Quick Details
Place of Origin: Hebei, China (Mainland)
Brand Name: YITENG
Model Number: BV BLV BVR RVV RV
Insulation Material: PVC
Type: Low Voltage
Application: Industrial
Conductor Material: Copper
Jacket: none
color: black grey orange green yellow
certification: ISO CCC CE
voltage: 450/750
market: Global
Packaging & Delivery
Packaging Details: | Wooden/Steel drum |
---|
Delivery Detail: | within 10days |
---|

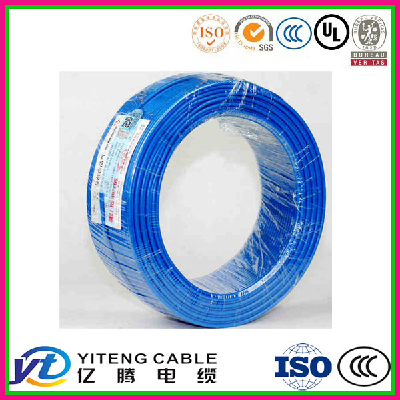

BVV BLV RVV electric wire,house wire
Product Description
Product Standards:
The product according to GB5023-1997 " rated voltage 450/750V and below PVC insulated cables ", JB8734-1998 " rated voltage 450/750V and below PVC insulated cables and wires and cords " standards, while also based on us GB Electrotechnical Commission standard IEC, British Standards , the German standards and U.S. standards.
Scope:
The products are suitable for rated voltage 450/750V power plant , fixed wiring and electrical appliances with flexible connections .
Use features:
Rated voltage U0 / U is 450/750V, 300/500V and 300/300V.
Long-term maximum allowable cable conductor operating temperature :
227 IEC 07 (BV-90) was 90 ℃; 227 IEC 08 (RV-90) is 90 ℃. Other models is 70 ℃.
The ambient temperature should not be less than 0 ℃.
Cable bend radius : D When ≤ 25mm cable bend radius ≥ 4D;
D> 25mm cable bend radius when ≥ 6D
(D- cable diameter )
Cable Model Type:
Model | Name | Standard |
227 IEC 01 (BV) | General purpose single-core non-sheathed cable with solid conductor | GB5023-1997 |
227 IEC 02 (RV) | General purpose single-core non-sheathed cable with flexible conductor |
227 IEC 05 (BV) | Inner conductor temperature inside is 70 ℃ single solid conductor cable without sheath |
227 IEC 06 (RV) | Interior inside a conductor temperature of 70 ℃ soft single conductor cable without sheath |
227 IEC 07 (BV-90) | Interior inside a conductor temperature of 90 ℃ for single solid conductor cable without sheath |
227 IEC 10 (BVV) | Light PVC sheathed cable |
227 IEC 42 (RVB) | Flat non-sheathed cord |
227 IEC 52 (RVV) | Light PVC sheathed cord |
227 IEC 53 (RVV) | Ordinary PVC sheathed cord |
BV | PVC insulated copper wire | JB8734-1998 JB8735-1998 |
BLV | Conductor PVC insulated wire |
BVR | Copper core PVC insulated flexible cable |
BVV | Conductor PVC insulated and sheathed round cable |
BLVV | Aluminum conductor PVC insulated and sheathed round cable |
BVVB | Copper core PVC insulated and sheathed flat cable |
BLVVB | Aluminum conductor PVC insulated and sheathed flat cable |
RVS | Copper core PVC insulated twisted flexible cable connection |
RVP | Copper core PVC insulated flexible cable shield |
RVP-90 | Copper heat 90 ℃ PVC insulated flexible cable shield |
RXS | Rubber insulated flexible wire braid twisted |
RVVP | PVC insulated copper shielded PVC sheathed cable |
Production range
Model | Rated voltage | Number of cores | Nominal cross section |
228 IEC 01 (BV) | 450/750 | 1 | 1.5~400 |
227 IEC 02 (RV) | 450/750 | 1 | 1.5~240 |
228 IEC 05 (BV) | 300/500 | 1 | 0.5~1 |
228 IEC 06 (RV) | 300/500 | 1 | 0.5~1 |
228 IEC 07 (BV-90) | 300/500 | 1 | 0.5~2.5 |
228 IEC 08 (RV-90) | 300/500 | 1 | 0.5~2.5 |
228 IEC 10 (BVV) | 300/500 | 2,3,4,5 | 1.5~35 |
228 IEC 42 (RVB) | 300/500 | 2 | 0.5~0.75 |
228 IEC 52 (RVV) | 300/500 | 2,3 | 0.5~0.75 |
228 IEC 53 (RVV) | 300/500 | 2,3~24 | 0.75~6 |
BV | 300/500 | 1 | 0.75~1 |
BLV | 450/750 | 1 | 2.5~630 |
BVR | 450/750 | 1 | 2.5~240 |
BVV | 300/500 | 1 | 0.75~10 |
BLVV | 300/500 | 1 | 2.5~10 |
BVVB | 300/500 | 2,3 | 0.75~10 |
BLVVB | 300/500 | 2,3 | 2.5~10 |
RVS | 300/500 | 2 | 0.5~0.75 |
RVP,RVP-90 | 300/500 | 1,2 | 0.08~6 |
RXS | 300/500 | 2 | 0.3~4 |
RVVP | 300/500 | 1,2~24 | 0.3~6 |

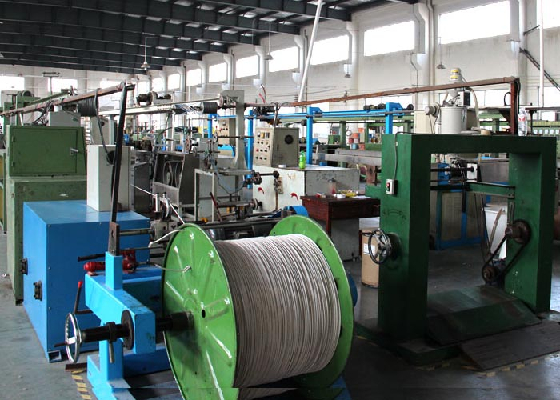

Company Information
Yiteng Cable Technology Hebei Co., Ltd
Established Year: 2014
Registered capital of RMB:100,000,000
Factory Area:36,000m2
Manufacturing Capacity per year: 250000km
Number of Employees: 250
Main products:
Bare conductors(AAC,ACSR,AAAC,ACAR,Aluminum Clad Steel Conductor);
Aerial Bundled Cable (ABC Cable);
Power cable,Electrical wire cable,
Armored cables,
Control cables,
Rubber insulated cables, PVC insulated wires and cables,
Battery cables,Instrument cables, Coaxial cables,Flat cables,
Welding cables,House wire,Special Cables etc.
FAQ
FAQ:
1.Q: Is your company a manufacturer or a trade company?
A: We are cable manufacturer.
2. Q: Where is your factory located? How can I visit there? A:Our factory is located in Ningjin City, Hebei,Province, China. You can fly to Shijiazhuang airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
3. Q: What is your sample policy?
A: Some of our samples are available for free, while others are available at a cost, which will be deducted from the purchase order.
4.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end.
5. Q: I am very interested in your product, can you sent me your full catalog and pricing list?
A: We can select some popular products for you immediately. Please let us know your requirements so that we can send out the quotation to you.
