Product Description

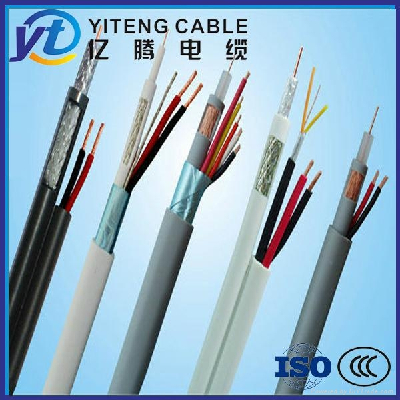

Computer Cable DJYVP 2*2*1.0
PE Insulated , PVC sheathed instrument cable is used in electronic computer system, monitoring circuit, automatic control system of signal transmission and detection instrument connections.
Relevant Standards: TICW/06-2009
Conductor Material : Bare Copper
Constitude Structure:1/1.13 /-0.011m
Strand OD:1.13mm
Insulation Material :PE
Insulation Mean Thickness:0.63mm
Insulation The Thinnest Point:0.47mm
Insulation OD: 2.4 /-0.1MM
Insulation Color:(Blue, white) ( Red, Blue)
Shielding( Braiding Lay)
Overall: Bare copper braided shielding: above 80%.
Jacket Material: PVC
Jacket Colour: Black.
Jacket mean Thickness :1.1mm
Jacket the thinnest Point:0.84mm
Finish approxomate Diameter: 10.3 /-0.5mm
Max. Conductor DC Resistance at 20C (om/km):19.5.
Rated Voltage: 300/500V.
Min Bending Radius: Fixed Installtaion:6*D
Mobile Installation:15*D
Rated Temperature: -30C- 90C.
Model and Data
TYPE | PAIRS | SPEC. | Cond. No. | Cond. Dia.φ | weight /KM | external Dia. mm | |
DJYVP | 1pairs | 0.75*2C | 1 | 0.98 | 58 | 7.1 | |
DJYVP | 2pairs | 0.75*2C | 1 | 0.98 | 103 | 10.3 | |
DJYVP | 3pairs | 0.75*2C | 1 | 0.98 | 131 | 10.9 | |
DJYVP | 4pairs | 0.75*2C | 1 | 0.98 | 162 | 11.9 | |
DJYVP | 5pairs | 0.75*2C | 1 | 0.98 | 194 | 13.1 | |
DJYVP | 6pairs | 0.75*2C | 1 | 0.98 | 226 | 14.3 | |
DJYVP | 7pairs | 0.75*2C | 1 | 0.98 | 249 | 14.3 | |
DJYVP | 8pairs | 0.75*2C | 1 | 0.98 | 282 | 15.5 | |
DJYVP | 9pairs | 0.75*2C | 1 | 0.98 | 319 | 17 | |
DJYVP | 10pairs | 0.75*2C | 1 | 0.98 | 352 | 18.2 | |
DJYVP | 11pairs | 0.75*2C | 1 | 0.98 | 381 | 18.8 | |
DJYVP | 12pairs | 0.75*2C | 1 | 0.98 | 404 | 18.8 | |
DJYVP | 13pairs | 0.75*2C | 1 | 0.98 | 436 | 19.8 | |
DJYVP | 14pairs | 0.75*2C | 1 | 0.98 | 459 | 19.8 | |
DJYVP | 15pairs | 0.75*2C | 1 | 0.98 | 493 | 21 | |
DJYVP | 16pairs | 0.75*2C | 1 | 0.98 | 516 | 21 | |
DJYVP | 1pairs | 1.0*2C | 1 | 1.13 | 66 | 7.4 | |
DJYVP | 2pairs | 1.0*2C | 1 | 1.13 | 119 | 10.9 | |
DJYVP | 3pairs | 1.0*2C | 1 | 1.13 | 153 | 11.5 | |
DJYVP | 4pairs | 1.0*2C | 1 | 1.13 | 189 | 12.6 | |
DJYVP | 5pairs | 1.0*2C | 1 | 1.13 | 228 | 13.8 | |
DJYVP | 6pairs | 1.0*2C | 1 | 1.13 | 266 | 15.1 | |
DJYVP | 7pairs | 1.0*2C | 1 | 1.13 | 295 | 15.1 | |
DJYVP | 8pairs | 1.0*2C | 1 | 1.13 | 334 | 16.4 | |
DJYVP | 9pairs | 1.0*2C | 1 | 1.13 | 378 | 18 | |
DJYVP | 10pairs | 1.0*2C | 1 | 1.13 | 418 | 19.3 | |
DJYVP | 11pairs | 1.0*2C | 1 | 1.13 | 452 | 19.9 | |
DJYVP | 12pairs | 1.0*2C | 1 | 1.13 | 481 | 19.9 | |
DJYVP | 13pairs | 1.0*2C | 1 | 1.13 | 520 | 21 | |
DJYVP | 14pairs | 1.0*2C | 1 | 1.13 | 549 | 21 | |
DJYVP | 15pairs | 1.0*2C | 1 | 1.13 | 589 | 22.2 | |
DJYVP | 16pairs | 1.0*2C | 1 | 1.13 | 618 | 22.2 | |
DJYVP | 1pairs | 1.5*2C | 1 | 1.38 | 85 | 8.3 | |
DJYVP | 2pairs | 1.5*2C | 1 | 1.38 | 157 | 12.5 | |
DJYVP | 3pairs | 1.5*2C | 1 | 1.38 | 204 | 13.3 | |
DJYVP | 4pairs | 1.5*2C | 1 | 1.38 | 256 | 14.6 | |
DJYVP | 5pairs | 1.5*2C | 1 | 1.38 | 310 | 16 | |
DJYVP | 6pairs | 1.5*2C | 1 | 1.38 | 364 | 17.5 | |
DJYVP | 7pairs | 1.5*2C | 1 | 1.38 | 406 | 17.5 | |
DJYVP | 8pairs | 1.5*2C | 1 | 1.38 | 461 | 19 | |
DJYVP | 9pairs | 1.5*2C | 1 | 1.38 | 521 | 21 | |
DJYVP | 10pairs | 1.5*2C | 1 | 1.38 | 577 | 22.5 | |
DJYVP | 11pairs | 1.5*2C | 1 | 1.38 | 627 | 23.3 | |
DJYVP | 12pairs | 1.5*2C | 1 | 1.38 | 668 | 23.3 | |
DJYVP | 13pairs | 1.5*2C | 1 | 1.38 | 723 | 24.6 | |
DJYVP | 14pairs | 1.5*2C | 1 | 1.38 | 765 | 24.6 | |
DJYVP | 15pairs | 1.5*2C | 1 | 1.38 | 822 | 26 | |
DJYVP | 16pairs | 1.5*2C | 1 | 1.38 | 863 | 26 |
Specification List
Specification | Line core logarithmic | Nominal cross section |
DJYPV DJYVP DJYPVP DJYP2V DJYVP2 DJYP2VP2
| 1-40 | 0.5 0.75 1.0 1.5 2.5 |
DJYPV22 DJYVP22 DJYPVP22 DJYP2V22 DJYVP2-22 DJYP2VP2-22 DJYP3V22 DJYVP3-22 DJYP3VP3-22 | 2-40 |
