Product Description

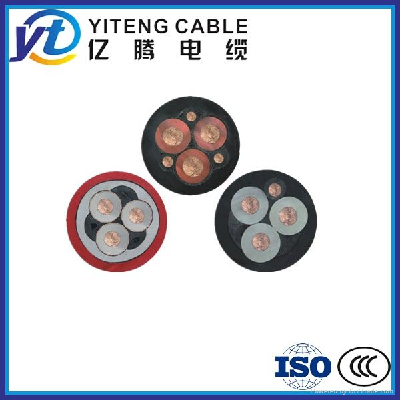

General Rubber Sheath Cable,YQ/YQW/YZ/YZW/YC/YCW Cable
Applications:
This cable is suitable for rated AC voltage 450/750 or below domestic appliances, power-operated tools and various portable electric equipments.
Technical date:
Insulation: rubber
Conductor: Aluminum/Copper
Voltage: 300/300V 300/500V 450/750V
Color:White-Blue-Red-Black-Brown-Yellow-Green-Transpanrent-Yellow/Green
Conductor | Insulation | Electrical Properties | Packing |
Sectional Area mm² | Conductor Construction NO.XΦmm | Diameter mm | Insulation Thickness mm | Outer Diameter mm | Max.Conductor Resistance DC 20℃ Ω/km | M/coil |
0.30 | 16x0.15 | 0.70 | 0.60 | 1.90 | 71.2 | 200 |
0.50 | 28x0.15 | 1.00 | 0.60 | 2.20 | 40.1 | 200 |
0.50 | 20x0.18 | 1.00 | 0.60 | 2.20 | 40.1 | 200 |
0.75 | 42x0.15 | 1.20 | 0.65 | 2.50 | 26.7 | 200 |
0.75 | 24x0.20 | 1.20 | 0.65 | 2.5 | 26.7 | 200 |
1.0 | 32x0.20 | 1.30 | 0.70 | 2.70 | 26.7 | 200 |
1.5 | 30x0.25 | 1.60 | 0.70 | 3.00 | 13.7 | 100 |
2.5 | 49x0.25 | 2.10 | 0.70 | 3.50 | 8.21 | 100 |
4.0 | 56x0.30 | 2.90 | 0.70 | 4.30 | 5.09 | 100 |
6.0 | 84x0.30 | 3.60 | 0.80 | 5.20 | 3.39 | 100 |
10.0 | 84x0.40 | 4.80 | 1.00 | 6.80 | 1.95 | 100 |
16.0 | 126x0.40 | 5.80 | 1.10 | 8.00 | 1.24 | 100 |
25.0 | 210x0.39 | 7.70 | 1.50 | 10.7 | 0.795 | 100
|
